Control Bulbs

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

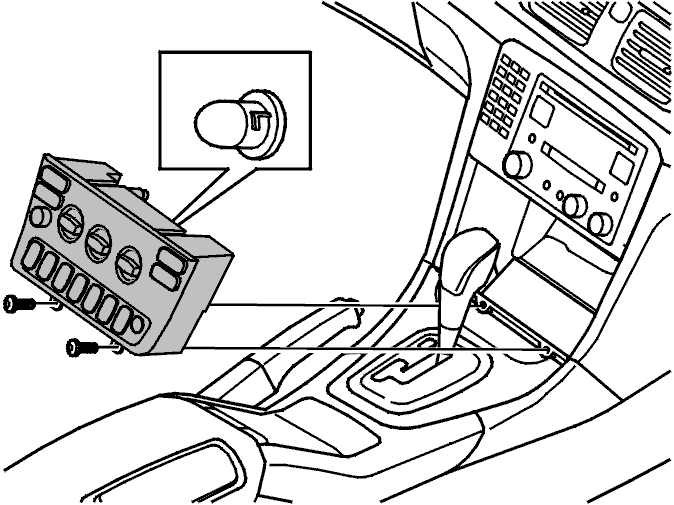

Fig 1: Identifying Dashboard Environment Panel Lighting Bulb

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the dashboard environment panel. See Dashboard environment panel (including climate control module (CCM)), replacing
Remove the bulb and holder by turning the holder clockwise.
