Bulb Sun Visor Mirror: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

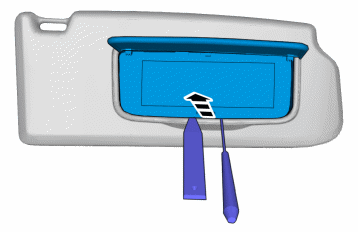

Fig 1: Removing Sun Visor Mirror (1 Of 3)

GLL162570

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Be extra careful when handling this component.

NOTE:

Use relative force.

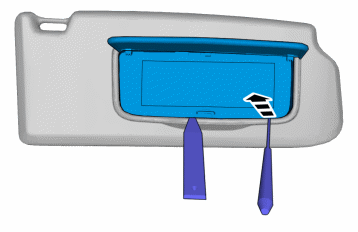

Fig 2: Removing Sun Visor Mirror (2 Of 3)

GLL162571

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Be extra careful when handling this component.

NOTE:

Use relative force.

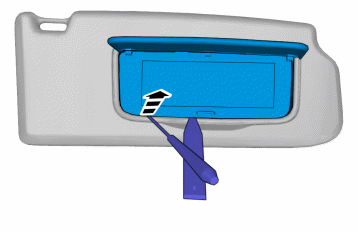

Fig 3: Removing Sun Visor Mirror (3 Of 3)

GLL162572

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Be extra careful when handling this component.

NOTE:

Use relative force.

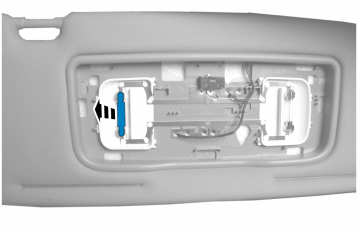

Fig 4: Removing Sun Visor Mirror Bulb

GLL162573

Courtesy of VOLVO CARS OF NORTH AMERICA.
