Headlamp/Bulb, Replacing: Removal: Bulb

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

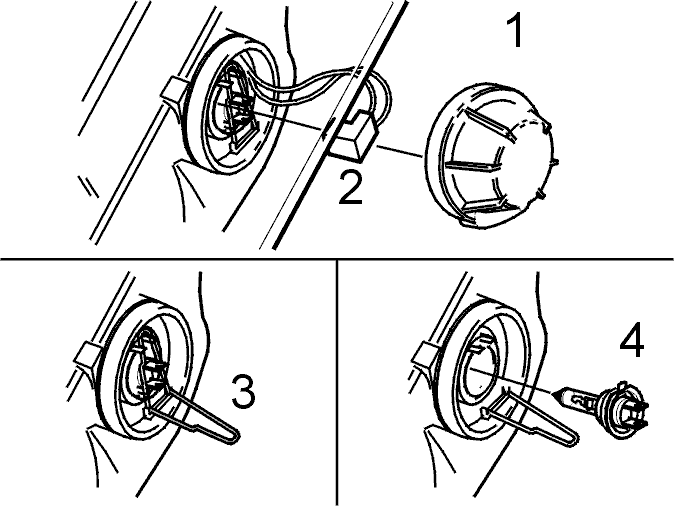

Fig 1: Identifying Low Beam Removal Procedure

Courtesy of VOLVO CARS OF NORTH AMERICA.

High and low beams

Disconnect and push the hose for the control module box to one side (when replacing on the right-hand side)
Twist off the cover (1)
Disconnect the connector (2)
Press the spring clip forward to the right. Then fold backwards and downwards (3)
Remove the bulb (4).

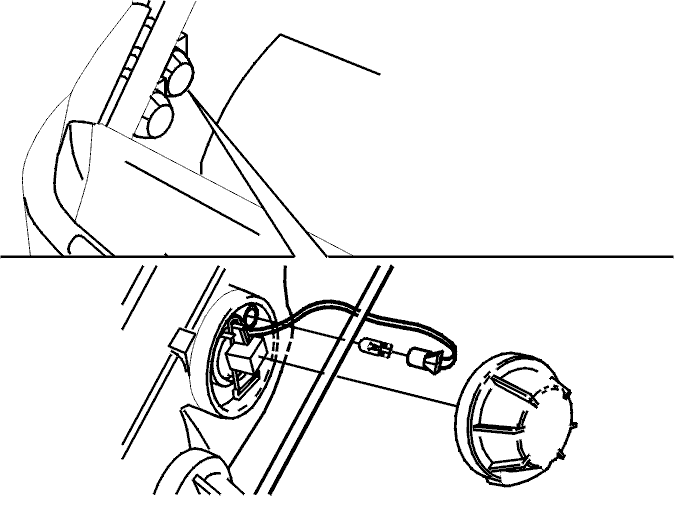

Fig 2: Identifying Lamp Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Parking lamps

Disconnect and push the hose for the control module box to one side (when replacing on the right-hand side)
Twist off the cover
Pull off the holder with the bulb
Pull the bulb out from the holder.
