Bulb Tail Lamp / Stop Lamp / Back-Up Lamp / Fog Lamp, Replacing: Removal: Bulbs

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

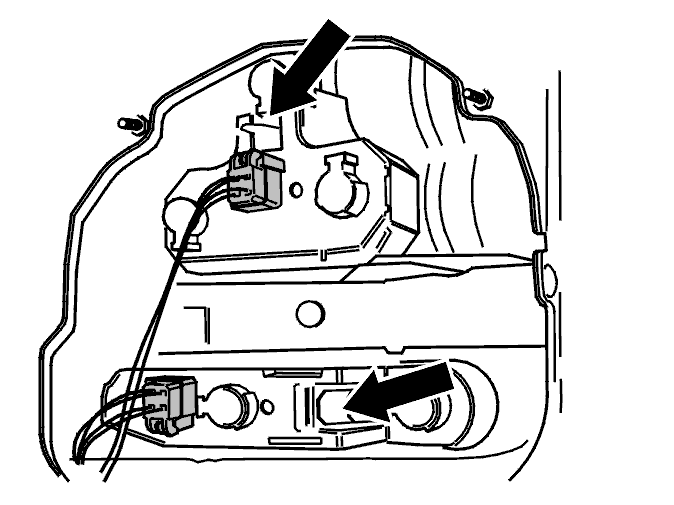

Fig 1: Identifying Spring Clip On Lamp Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the spring clip on the lamp holder. Angle out and remove the lamp holder
Remove the bulb.

Fig 2: Location Of Lamps In Tail Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

For the location of lamps in the tail lamp, see the illustration.

Stop (brake) lamps
Back-up (reversing) lamps
Turn signal lamps
Rear fog lamps
Tail lamps
Tail lamps.

NOTE:

There is only a fog tail lamp bulb in one of the tail lamps. In the left tail lamp on left-hand drive cars and in the right on right-hand drive cars.
