Normal position

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

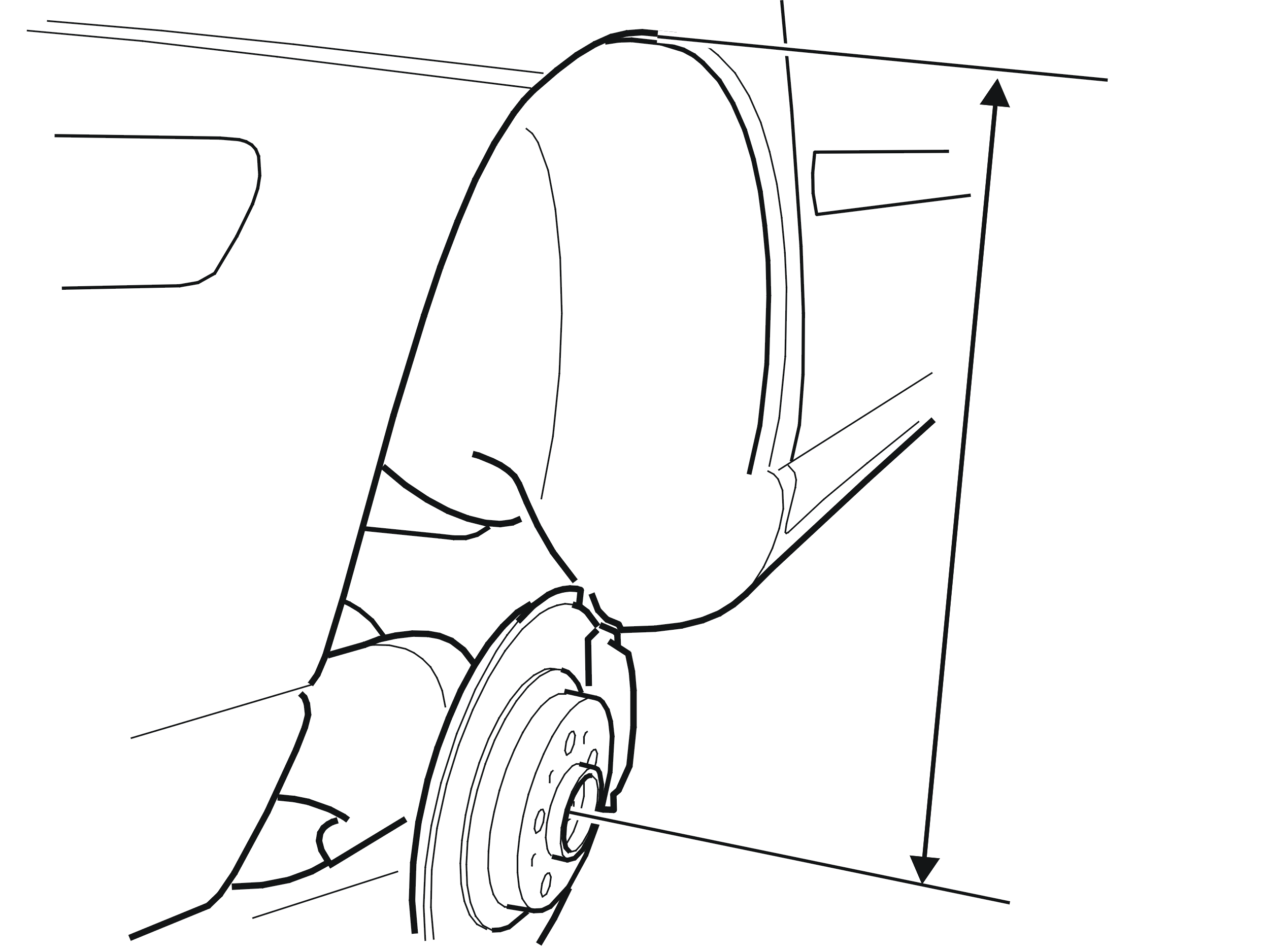

Fig 1: Checking Distance From Fender Edge To Center Of Wheel
GLL107868Courtesy of VOLVO CARS OF NORTH AMERICA.

The normal position of the rear suspension is 453 mm from the wing edge to the center of the wheel.
