Remove the cross member between the wheel arches
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Cars with SRS: Remove the ignition key to lock the steering wheel. Do not change the position of the steering wheel or front wheels while the steering shaft joint is removed from the steering gear.

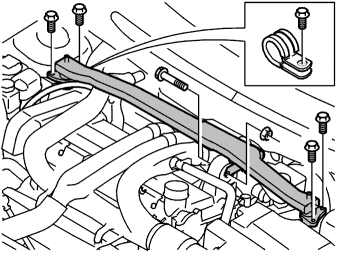

Remove:
- the screw and nut in the engine mounting
- the four screws in the wheel arches
- the cross member
- the screw for the oil hose clamp.
