Lower the sub-frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

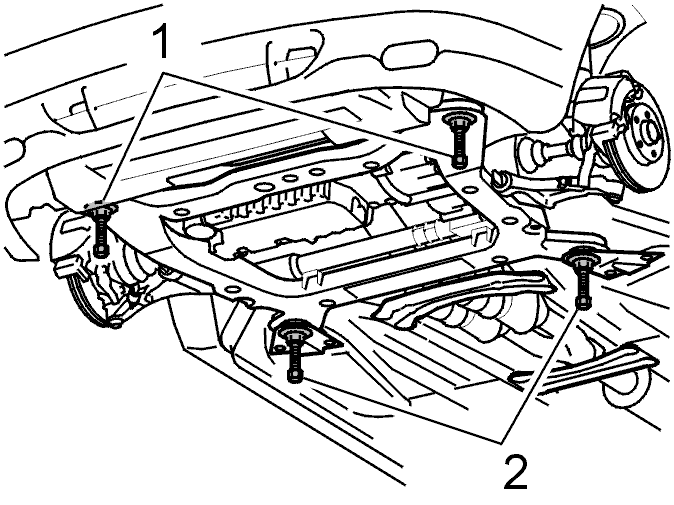

Fig 1: Lowering Front Of Sub-Frame By Half Of Tool Thread

Courtesy of VOLVO CARS OF NORTH AMERICA.

Start by lowering the front of the sub-frame by half of the tool thread (1).

Repeat the procedure at the rear end (2).

Now lower the frame to the full length of the tool as described above.

Cars with turbocharged engines:

Check while lowering that the charge air pipe by the lower charge air cooler (CAC) connection does not catch on the radiator

NOTE:

It is important to lower the sub-frame in the right order. Otherwise the steering shaft joint will catch in the lead-in in the bodywork.
