Lower the car. Remove the power brake booster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

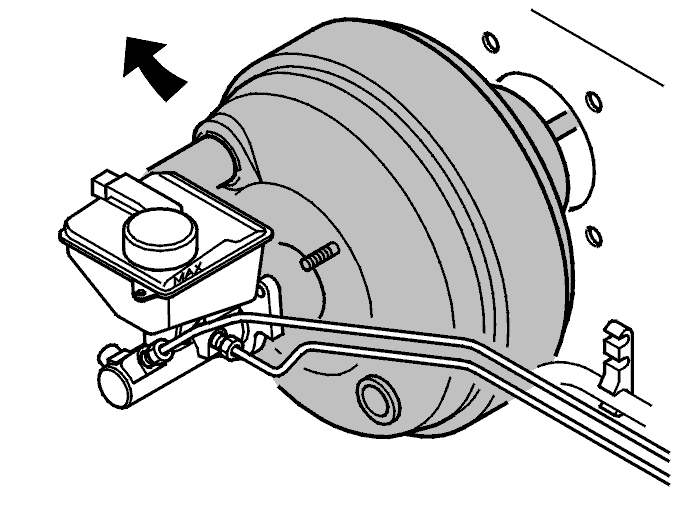

Fig 1: Pulling Out Master Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pull out the master cylinder.

Remove power brake booster.

NOTE:

Keep the seal between the power brake booster and the firewall.
