Cars with passenger compartment heaters: Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

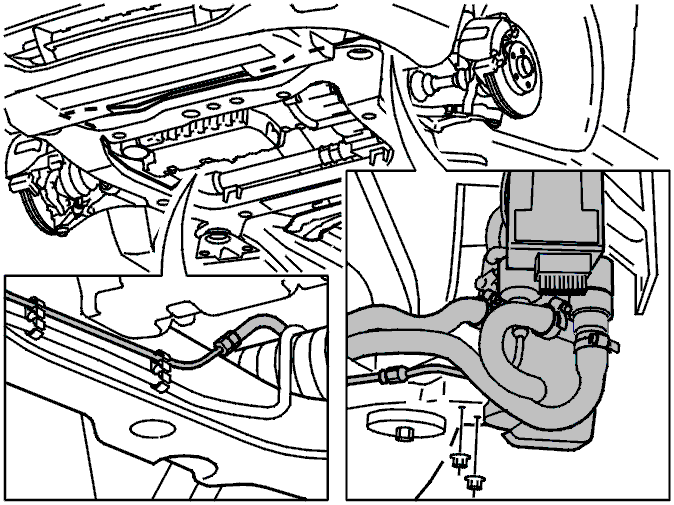

Fig 1: Bracket On Left Side Of Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Cars with a passenger compartment heater: Remove the nuts for the passenger compartment heater. The nuts are in a bracket on the left side of the sub-frame.

Hang the passenger compartment heater from the bodywork.

Remove the fuel line from the clips on the sub-frame and the mounting by the steering shaft.
