Lift the sub-frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

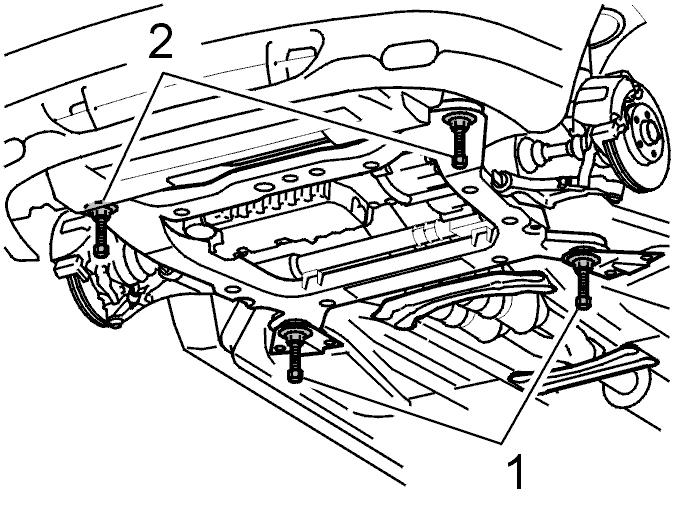

Fig 1: Edge Of Sub-Frame Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift:

the sub-frame. Use the earlier installed screws 9995517 and 9995518 . Check that the steering shaft joint does not catch in the lead-in the bodywork when the sub-frame is lifted
the rear edge of the sub-frame (1) halfway along the tool's screw length. Now repeat at the front of the sub-frame (2)
the sub-frame until its bushings are only a few millimeters from the frame members in same order as above.

NOTE:

It is important that sub-frame is lifted in the correct order.
