Installing the brake pipe, continued

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

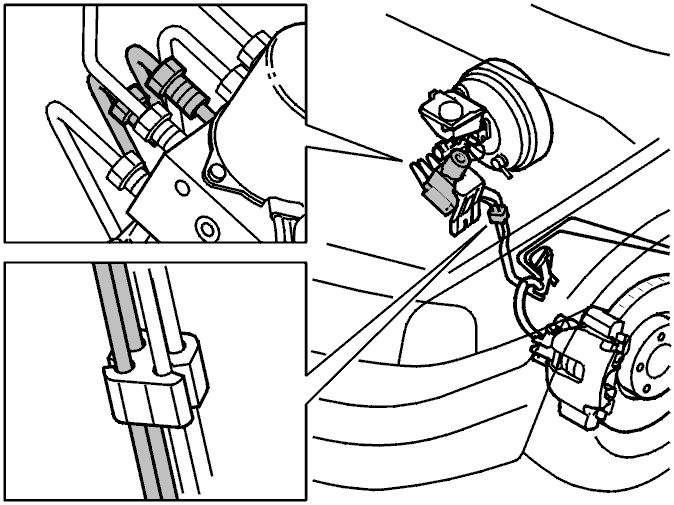

Fig 1: Front-Rear Brake Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the brake pipe in the ABS hydraulic modulator. Tighten to 17 Nm
the brake pipe in its clips at the bracket. Adjust the pipe as necessary
the clip holder on the brake pipes by the side member
the bracket. Tighten to 12 Nm .

NOTE:

The brake pipes must not be in contact with each other or the car body.

Check for leakage. Check that the ABS lines are correctly secured in their clips.

Install the wheel

See Installing wheels .
