Remove the brake pipe from the car
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

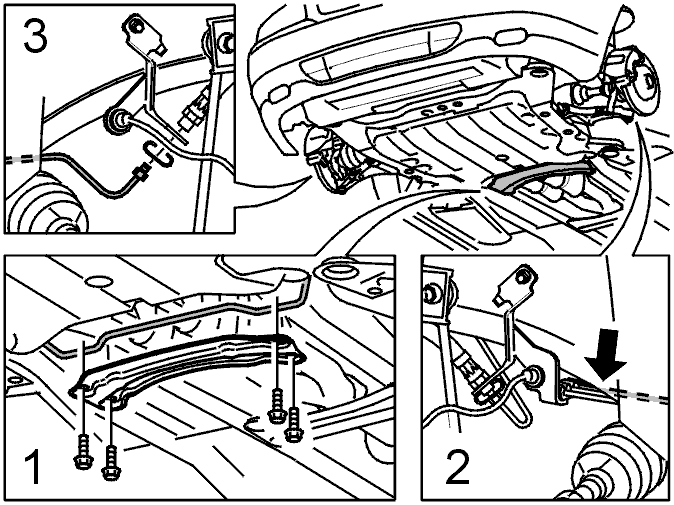

Raise the car. Remove:
- the screws for the front cross member (1)
- the pipe from the bracket, left-hand side (2)
- the cross member. Remove the brake pipe from its clips.
Separate the brake pipe and brake hose at the bracket (3).
Counterhold the brake hose so that it does not twist.
Remove the brake pipe from the car.
