Install the new brake pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

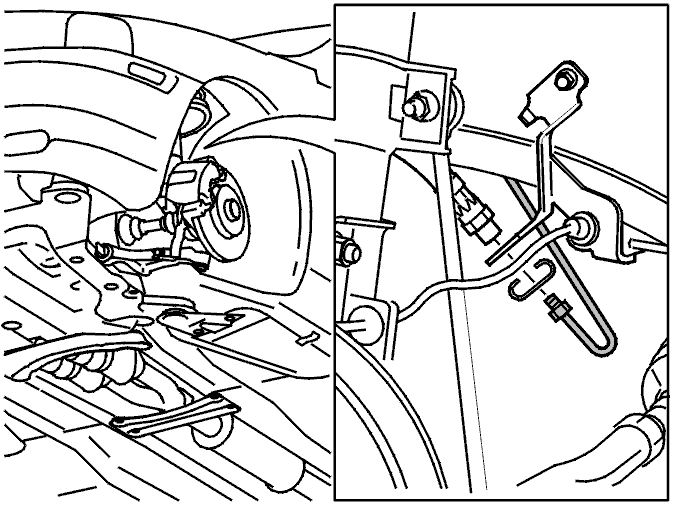

Fig 1: Brake Pipe From Car

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The new brake pipe must be bent into the correct shape when installing.

This is important otherwise the pipe may be subject to stresses when it is in place.

Tighten pipes on brake hose to 17 Nm .

Check that the hose is not twisted.
