Install the brake pipe in the ABS hydraulic modulator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

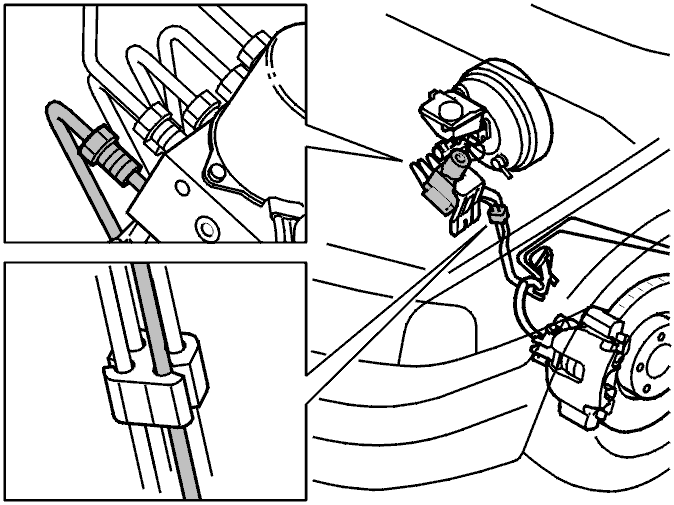

Fig 1: Front Left Brake Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the brake pipe in the ABS hydraulic modulator. Tighten to 17 Nm
the pipe in its holder. Open the holder
the ABS line in its clips on the brake pipe
the integrated relay / fusebox.
the air cleaner (ACL) housing. See Checking for air in the system. Checking for brake fluid leaks .
