Removing the panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Manual Adjustment For Parking Brake

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel for the center console on the left-hand side.

Locate the adjustment for the parking brake (1).

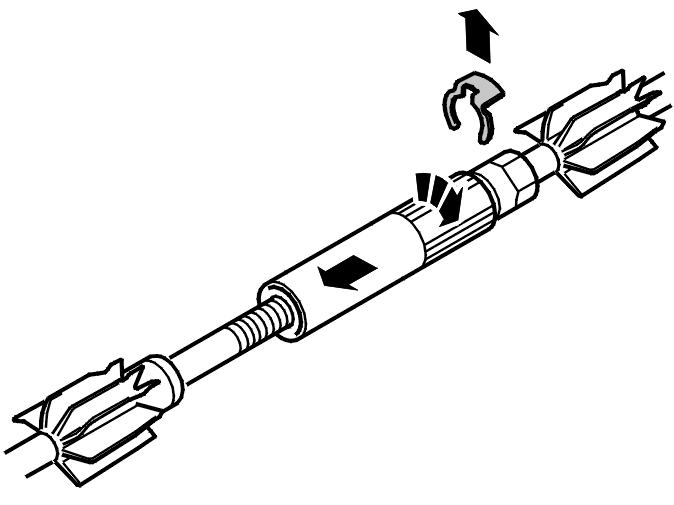

Fig 2: Removing Retaining Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the retaining clip.

NOTE:

Take care when removing the retaining clip.

Screw the socket clockwise over the groove for the retaining clip. Press the socket back over the adjustment rod.

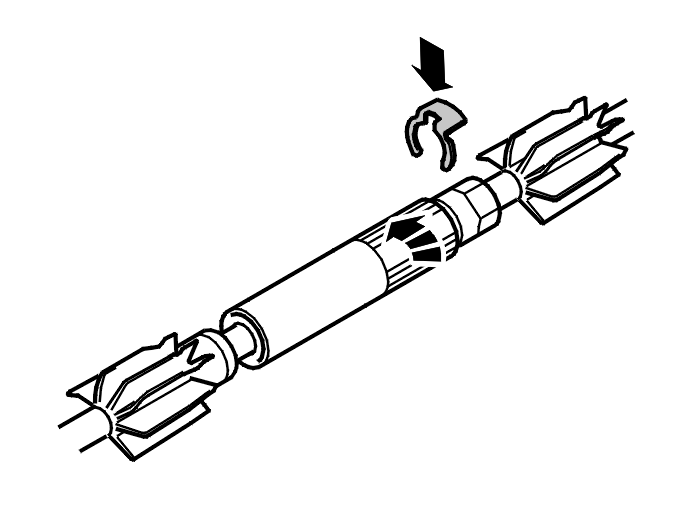

Fig 3: Installing Retaining Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Screw the socket counter-clockwise so that the groove for the clip emerges.

Install the clip.
