Removing the parking brake pedal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

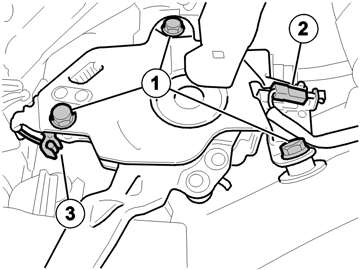

Fig 1: Identifying Bolts, Connector And Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the pedal (1) from the body, 3 screws, and pull/turn it diagonally backwards/inwards
the wiring (2) for the pedal switch
the disengagement cable (3) for the pedal.
