Resetting the parking brake

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

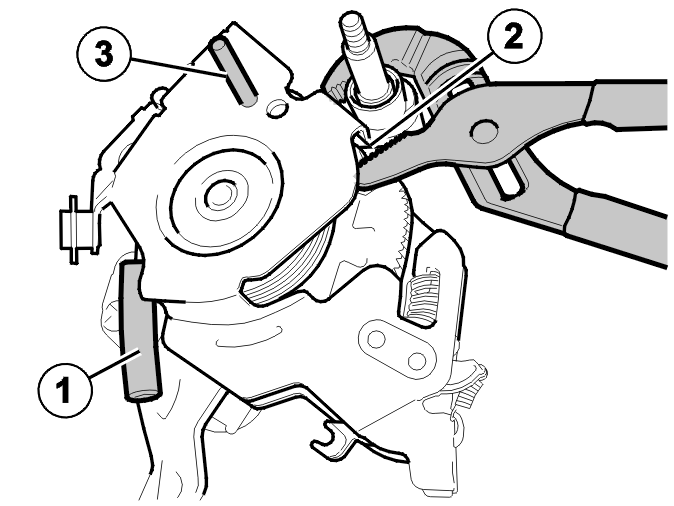

Fig 1: Resetting Parking Brake

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the primary cable mounting (2) back into place.

Remove the locking pin (3). Reset the primary cable mounting to the operating position.

Remove the hose from the friction spring (1).
