Installing the brake pads

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Left And Right Brake Pads

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The rear brake pads on the piston side for the XC90 are different on the left and right-hand sides. The brake pads are marked with an arrow indicating the direction of the disc and with an L for the left-hand side and an R for the right-hand side.

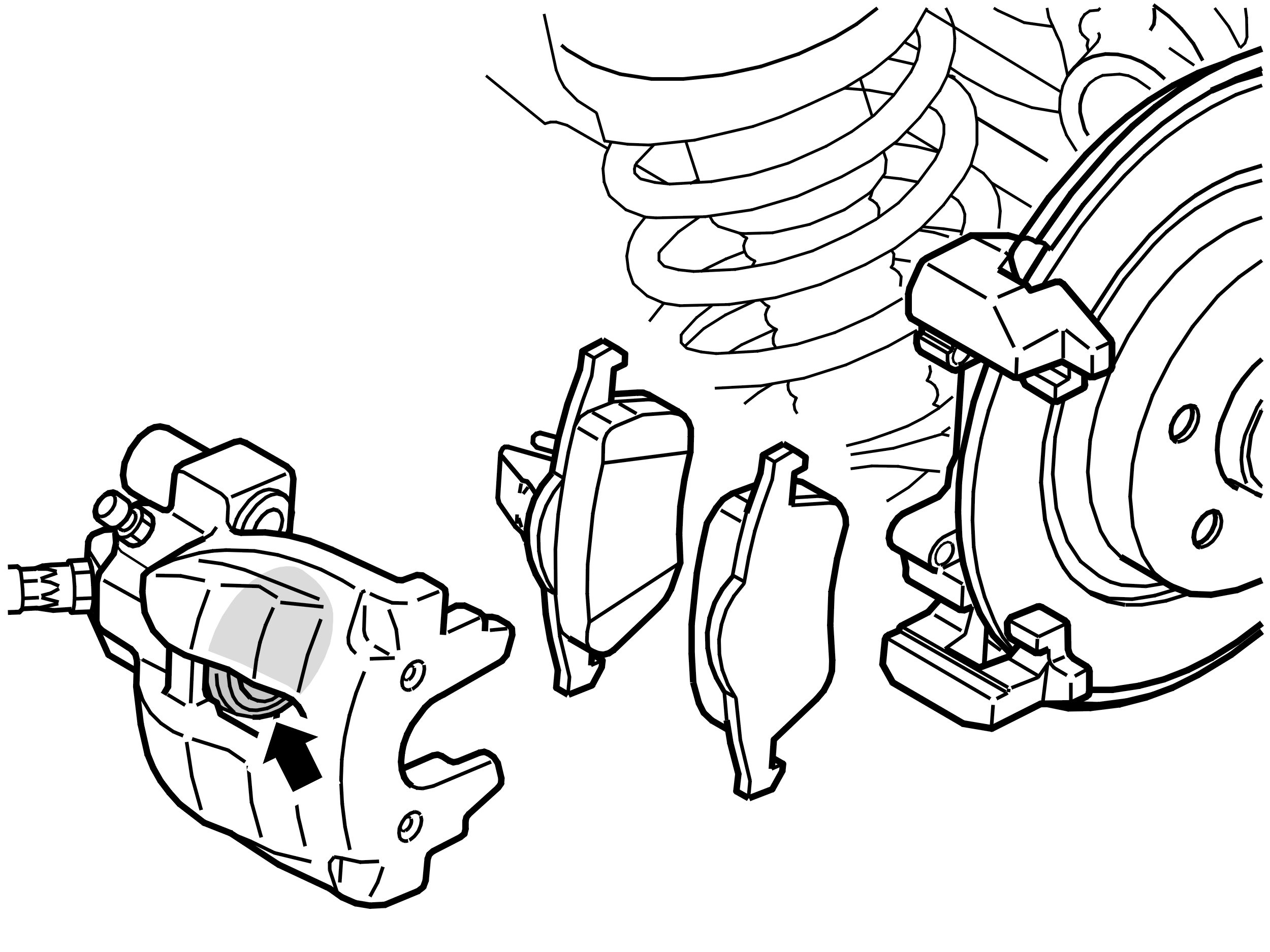

Fig 2: Brake Caliper

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press piston back into cylinder on brake caliper.

Check that the dust cover is correctly positioned.

Install:

new brake pads
the brake caliper.

Fig 3: Identifying Retaining Springs And Brake Pad Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Check the rubber sleeves of the locating pins. Replace if necessary.

Insert the locating pins in the rubber sleeves.

Tighten the locating pins. Tighten. See: Tightening torque .

Install protective caps (1).

Install the retaining spring (3).
