Cleaning the brake caliper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

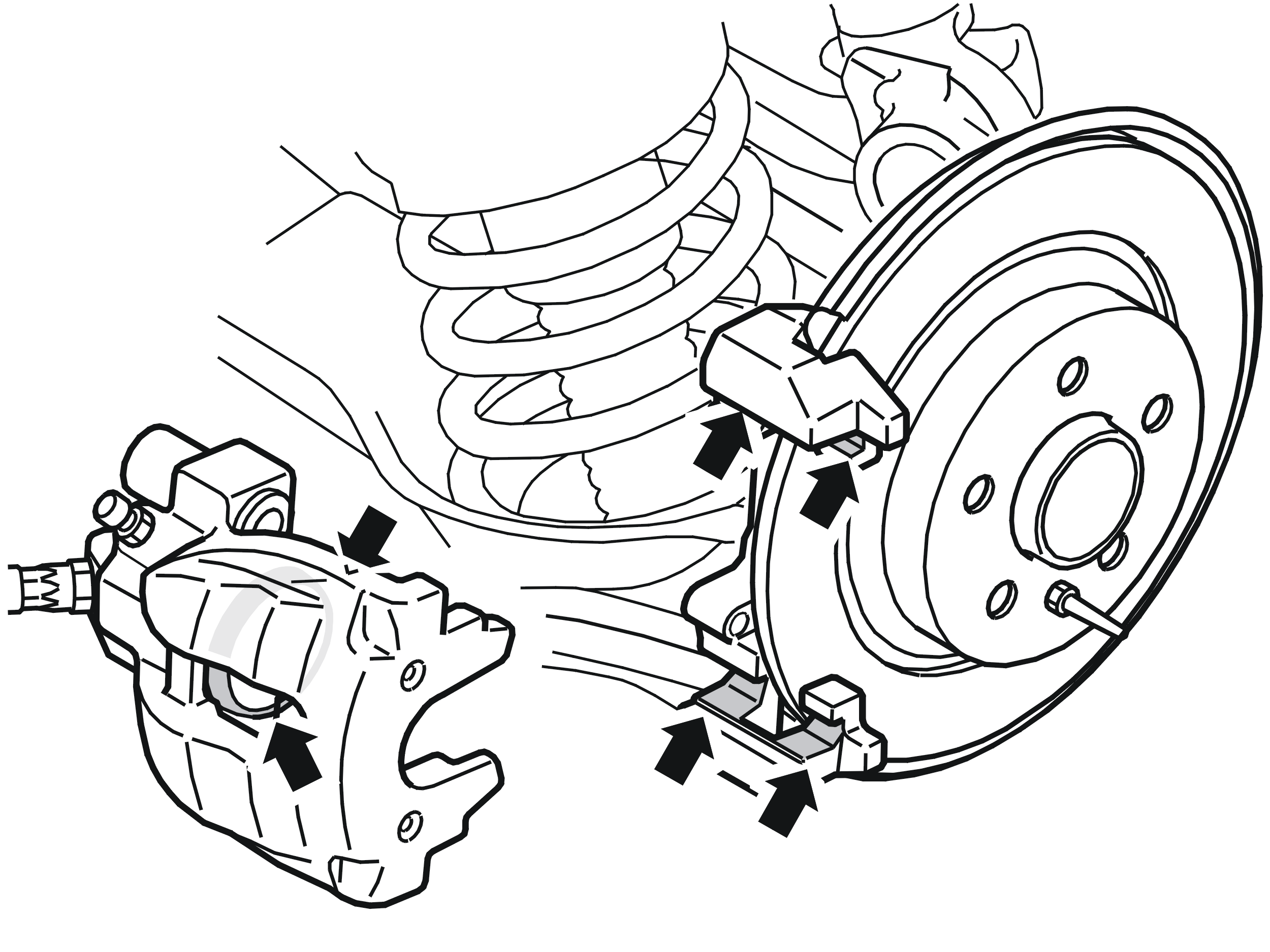

Fig 1: Brake Caliper And Dust Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean and check the brake caliper and dust cover.

Clean and check the brake pad mating surfaces in the brake caliper and caliper holder.

Clean the sliding pins using a steel brush.

Check piston dust boot.

NOTE:

If the dust boot is damaged dirt may have penetrated the cylinder. If this is the case the caliper must be replaced.
