Climate unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

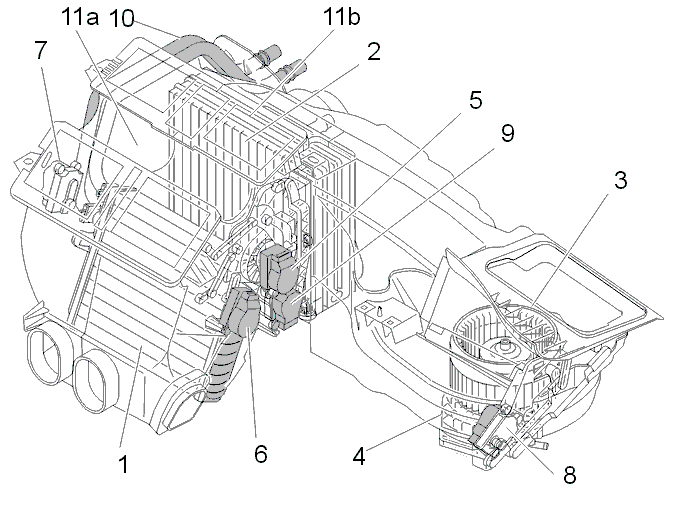

Fig 1: Identifying Climate Control Unit
GLL105158Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Heat exchanger
  2. Evaporator
  3. Blower fan motor
  4. Power unit
  5. Air distribution damper motor
  6. Damper motor temperature right
  7. Damper motor temperature left
  8. Recirculation damper motor
  9. Defroster damper motor (ECC)
  10. Coolant pipe connection; to and from the engine compartment
  11. Temperature sensor evaporator (left-hand drive cars)
  12. Temperature sensor evaporator (right-hand drive cars).
