Rear climate control unit, XC90 only

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

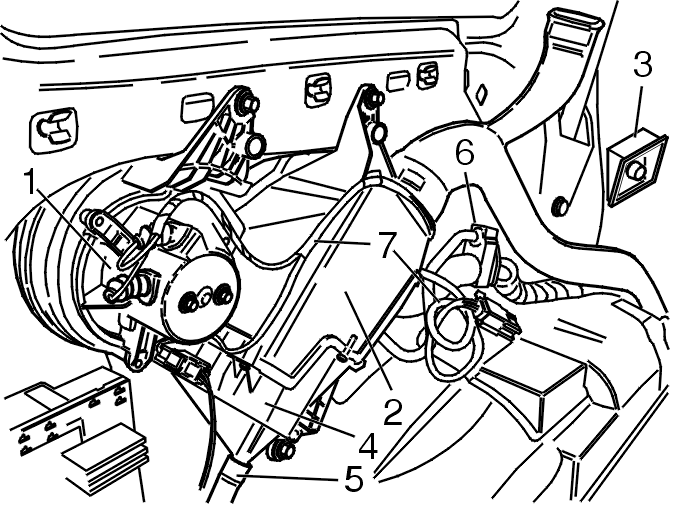

Fig 1: Identifying Rear Climate Control Unit
GLL103705Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Fan motor
  2. Evaporator
  3. Switch, fan speed
  4. Evaporator housing, lower
  5. Drain hose
  6. Pipe at the rear expansion valve - engine compartment
  7. Cable harness
