Passenger Compartment/Door Mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

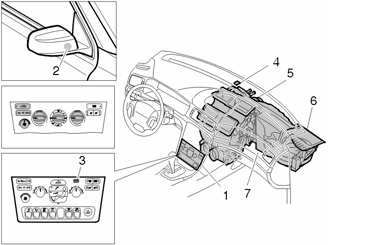

Fig 1: Identifying Climate System Passenger Compartment
GLL103704Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Climate control unit
  2. Outside temperature sensor
  3. Passenger compartment temperature sensor (ECC)
  4. Sun sensor (ECC)
  5. Climate control unit
  6. Air quality sensor
  7. Multifilter/filter.
