Engine compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

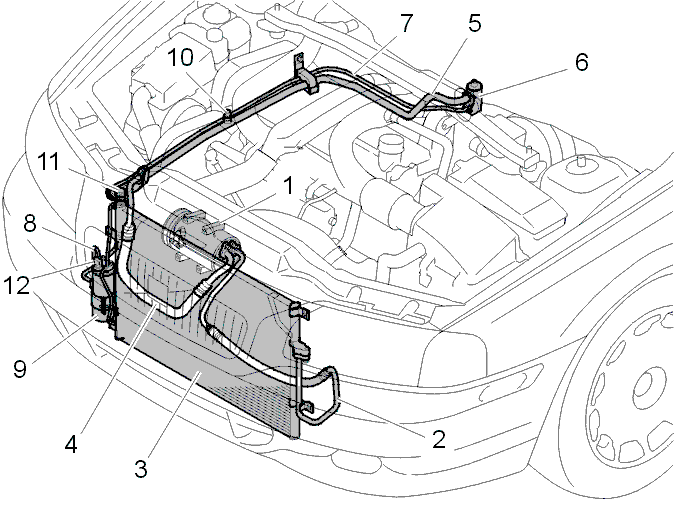

Fig 1: Identifying Climate System Engine Compartment
GLL105159Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Compressor
  2. Compressor - condenser hoses and pipes
  3. Condenser
  4. Hoses and pipes at the junction point of the side member - compressor
  5. Pipe at the expansion valve - junction point side member
  6. Expansion valve
  7. Pipe, receiver - expansion valve
  8. Intermediate pipe between the receiver-member and the expansion valve
  9. Accumulator
  10. Service valve
  11. Service valve filling/emptying
  12. Pressure sensor.
