Climate control unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

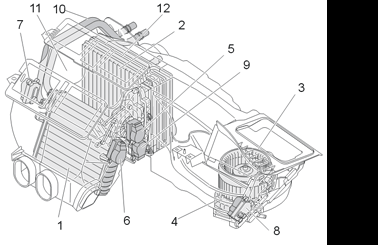

Fig 1: Identifying Climate Control Unit
GLL148301Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Heat exchanger
  2. Evaporator
  3. Fan motor
  4. Power unit
  5. Damper motor module (DMM) air distribution
  6. Damper motor module (DMM) temperature right
  7. Damper motor module (DMM) temperature left
  8. Damper motor module (DMM) recirculation
  9. Damper motor module (DMM) defroster
  10. Coolant pipe terminal; to and from the engine compartment
  11. Temperature sensor, evaporator (left-hand drive cars)
  12. Temperature sensor, evaporator (right-hand drive cars).
