Secure the drive shaft. Remove the boot

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

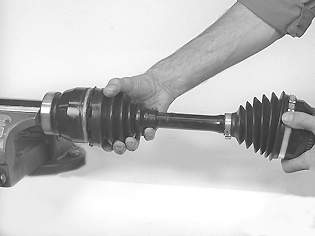

Fig 1: Securing Drive Shaft
GLL109792Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the drive shaft as close to the bearing as possible.

NOTE:

Do not over tighten. The shaft is hollow.

Remove the clamps from the boot. Press the outer section of the shaft inwards forcefully. At the same time pull the boot off the joint.

NOTE:

Take care that the shaft does not separate when the boot is removed from the constant velocity joint. The joint has no axial pinion.
