Clean and mark up the constant velocity joint

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

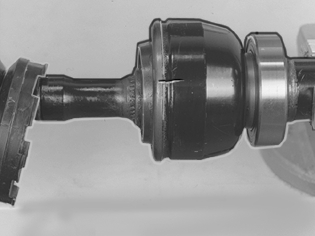

Fig 1: Cleaning And Marking Up Constant Velocity Joint
GLL109239Courtesy of VOLVO CARS OF NORTH AMERICA.

Wipe off the grease from the joint.

Mark up the constant velocity joint, ball holder and shaft in relation to each other.

Use an electric scriber.
