Connectors, transmission, disconnecting/connecting: Disassembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

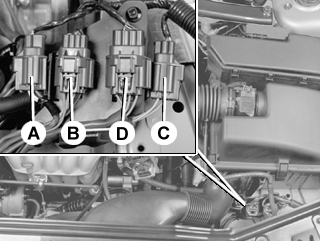

Fig 1: Identifying Connectors For Transmission Sensors And Solenoids

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transmission input and output speed sensors.
Gear-shift position sensor.
Oil temperature sensor solenoids: SLU, SLT and SLS.
Solenoids S1 - S5.

Unhook the mounting with the connectors for the transmission from the bracket for the air cleaner (ACL) housing.

Separate the connectors.
