Cable Shoe: Information
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

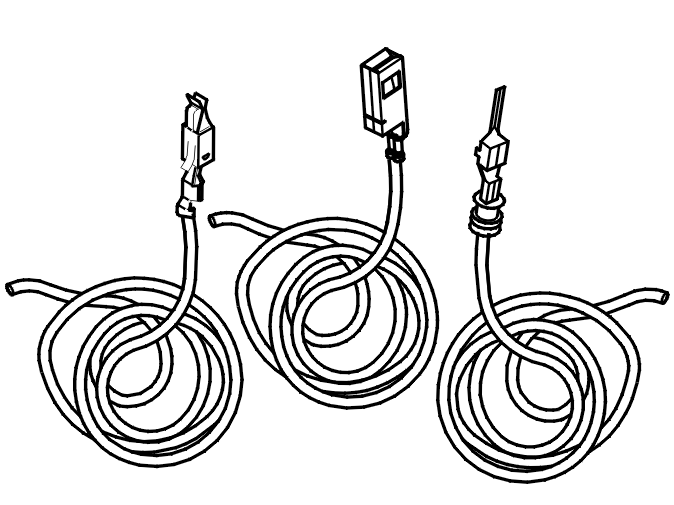

In 2003, the cable terminal with a pre-crimped cable section was introduced to the Volvo range as shown. This method applies for repairs with this type of cable terminal.
CAUTION:
Ensure that the new pin has the same type of surface treatment as the old.
CAUTION:
For repairing SRS wiring, see Cable harness SRS system, repair .
