Replacing the cable terminal, relay section
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the relays from the area to be exposed
- Lift up the insulating plate from the area to be exposed

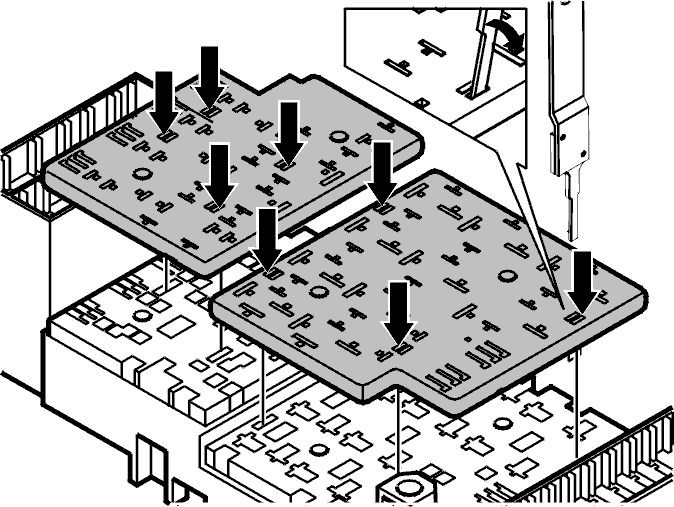

- Remove the insulating plate from the central electrical unit by releasing the catches while lifting the insulating plate
- HINT: The catches can also be released from the cable side. Use the terminal removal tool.
- Remove the cable terminal, see Removing cable terminals with locking tabs
- HINT: Use terminal removal tool 9512633 .
