Battery, replacing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: As the graphics in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the graphics is always correct.

NOTE: Check the performance of the battery to determine whether it is defective or not. See Fault-tracing and testing the battery .

Preparatory work

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

WARNING: See Battery, disconnecting .

Fig 2: Folding Up Floor Hatch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold up the floor hatch.

Unhook the strap.

Push the floor hatch and compartment to one side.

Removal

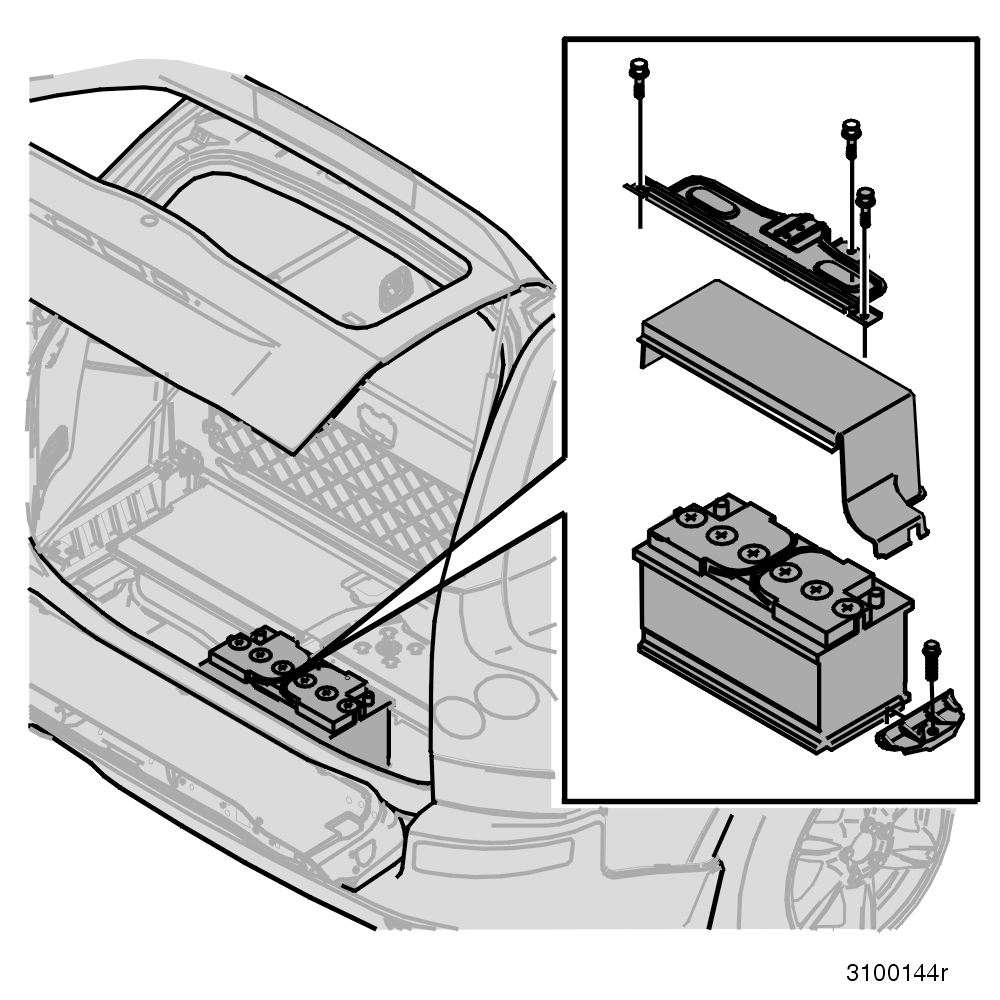

Fig 3: Identifying Battery Mounting Bracket & Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the nut securing the mounting bracket to the floor
the screws holding the mounting bracket against the rear crossmember
the mounting bracket
the protective cover
the drain hose (1) from the side of the battery
the battery negative lead
the battery positive lead.

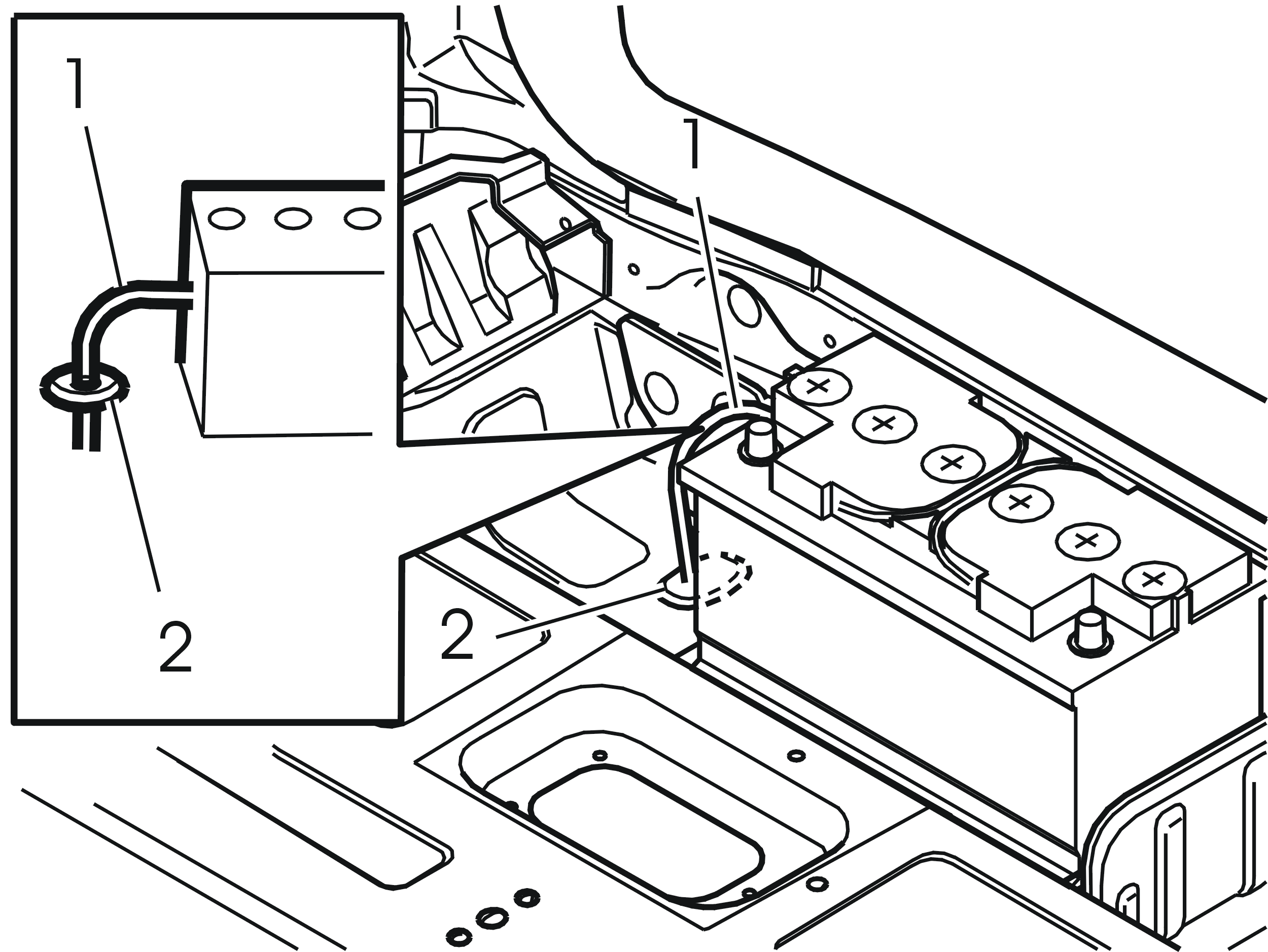

Fig 4: Draining Battery

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the battery mounting.

Remove the battery.

NOTE: For tightening torques, see Tightening torque .

WARNING: See Battery, disconnecting .

Installation

Install:

the battery
the battery mounting. Screw into place
the battery positive lead. Screw into place
the battery negative lead. Screw into place
the drain hose on the side of the battery
the protective cover
the mounting bracket
the screws holding the mounting bracket against the rear crossmember
the nut securing the mounting bracket to the floor
the floor compartment and hatch. Hook the strap into place. Close the hatch.
