Installing the relay

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

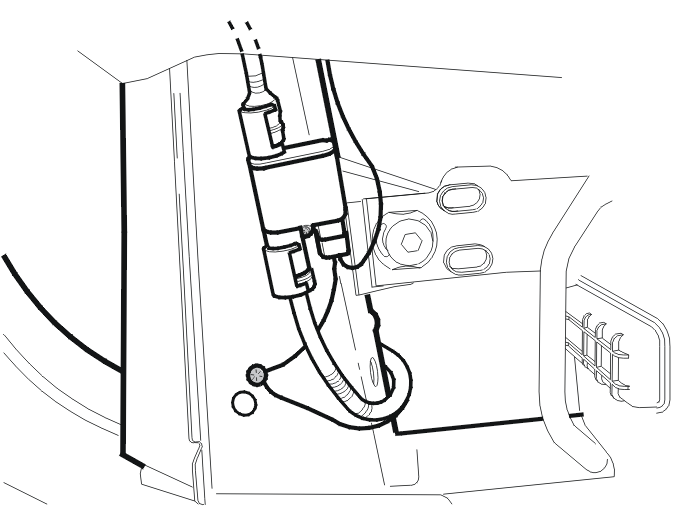

Fig 1: Electrical Engine Block Heater Relay
GLL103999Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector.

Reinstall the relay (reconnect it to the adapter socket if applicable).

Tighten the screw.
