Removing the connector and the cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

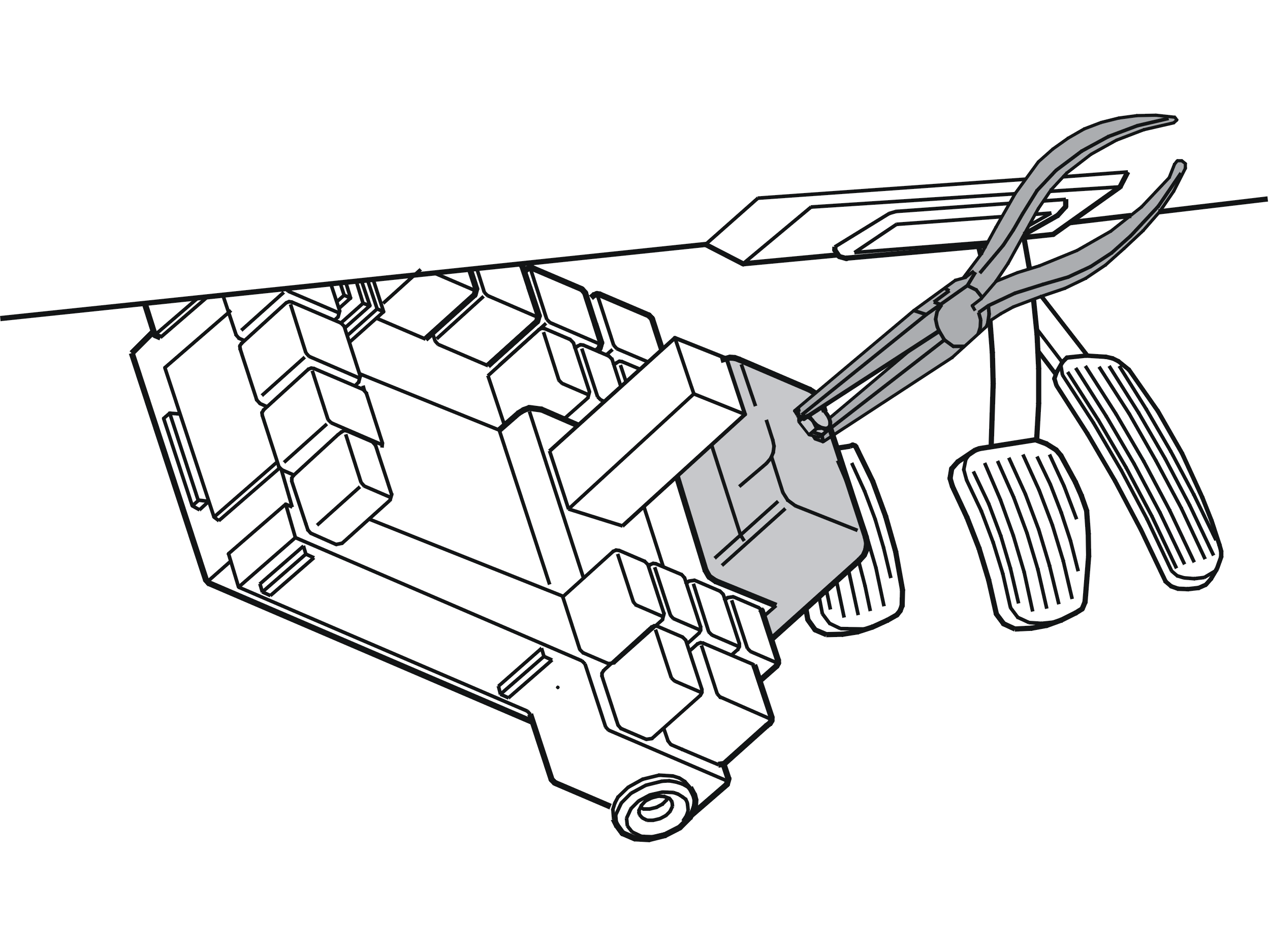

Fig 1: Disconnecting Connector Using Pliers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the screw holding the connector so that it releases from the threads. Check that the screw is free with your fingers.
NOTE: Do not damage the pins.
Use pliers to disconnect the connector. Grip the screw and pull it straight outwards so that the connector and cover follow.

Fig 2: Identifying Relay Box In Passenger Compartment/Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove all relays and shunts bridged to the control module. Note the locations.

Fig 3: Identifying Control Module Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the catch on the rear. Use a screwdriver
Lift and pull out the control module.

Fig 4: Control Module Terminals (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the control module connector is intact.

Fig 5: Control Module Terminals (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
