Replacing the fan unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

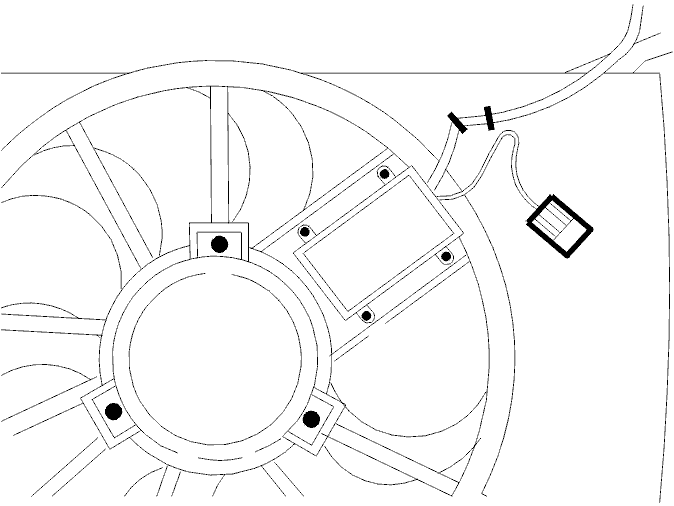

Fig 1: Engine Cooling Fan, Cable, Connector And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the engine cooling fan (FC) on a flat surface with the fan pulley downwards.

Remove

the cable and connector from the holder on the fan shroud.
the screws for the control module and the blower fan motor.

Lift off the fan shroud.

Install a new fan unit in reverse order.
