Removing the skid plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

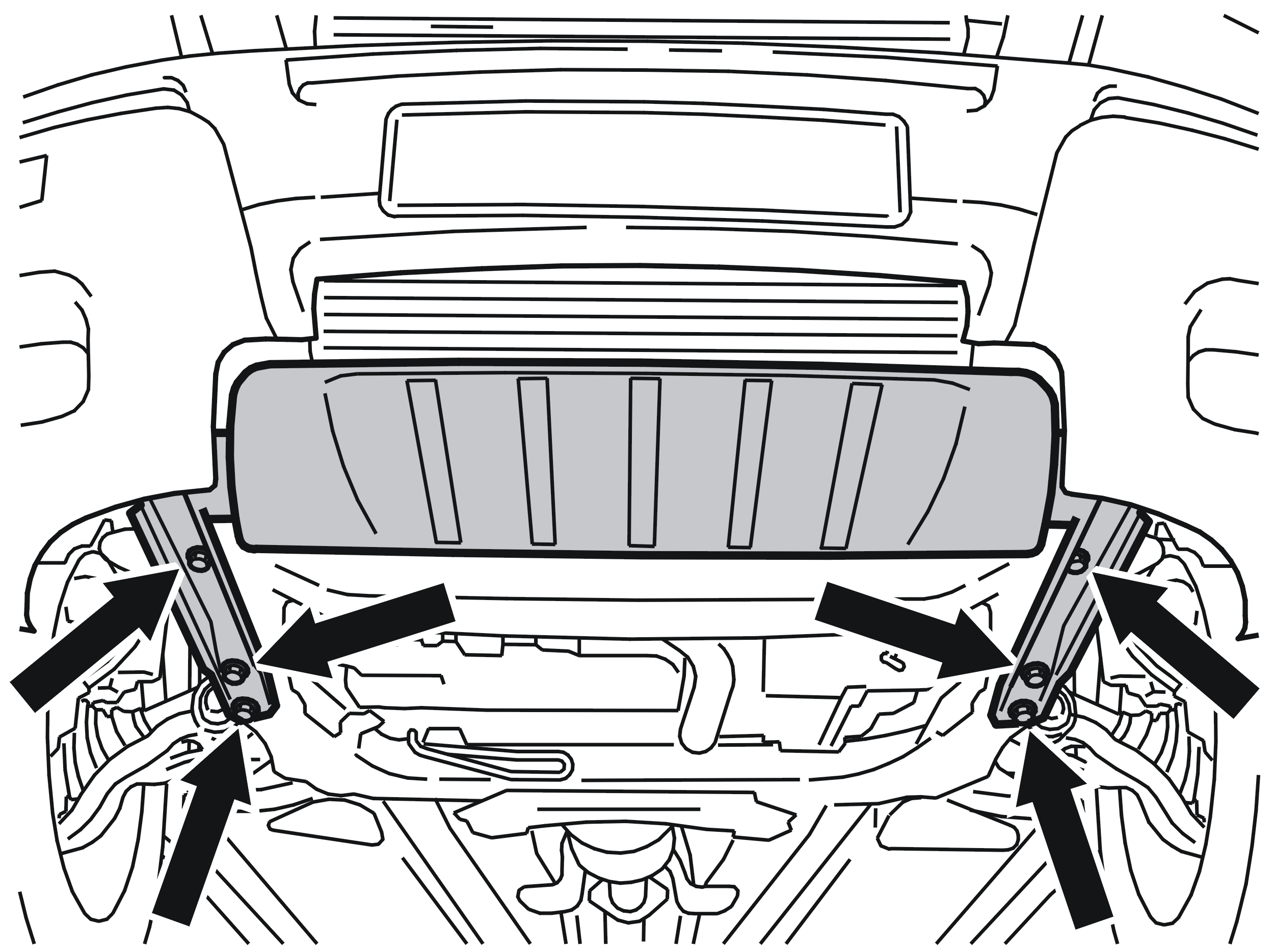

Fig 1: Splash Guard. Protective Plate And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 6 screws.

Fig 2: Identifying Protective Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift and slide the splash guard forward.

Remove the protective plate.

NOTE:

There is a guide sleeve on the upper mounting for the plate. This must be lifted slightly so that the panel can be slid forward.
