Remove the brake shoes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Brake Shoe Fixing Springs & Tool (999 7225)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two fixing springs for the brake shoes. Use 9997225 .

Compress the spring and move it backward, and let up so that the spring's end fits the slot in the bracket and can be removed.

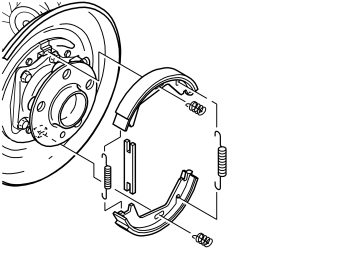

Fig 2: Identifying Brake Shoes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the return spring at the expander.

Bend the brake shoes apart and remove them with the return spring and spacer.
