Installation brake components, continued

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

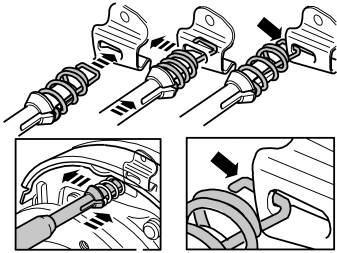

Fig 1: Identifying Brake Shoe Fixing Springs & Tool (999 7225)

Courtesy of VOLVO CARS OF NORTH AMERICA.

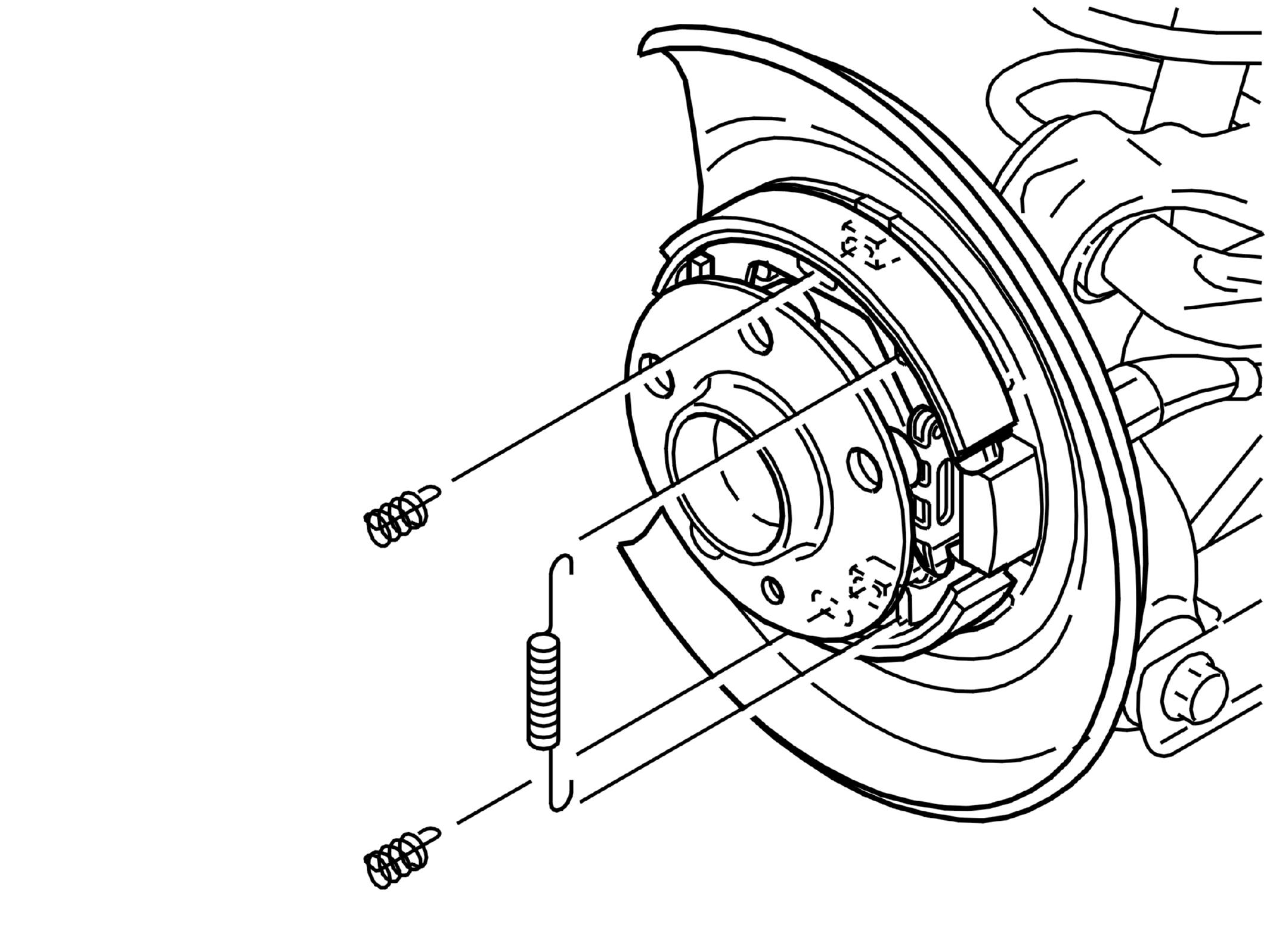

Fig 2: Identifying Springs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the fixing springs for the brake shoes and the return spring at the expander.

Install:

the lower fixing spring, use 9997225 .
Point the spring's catch forward, compress the spring and move it forward and let up so that the catch locks in the bracket.
the upper fixing spring.

Check that the brake shoes are positioned correctly in the expander.

Install the return spring at the expander.
