Adjust the handbrake
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
The handbrake lever must be in its lowest position.
Full effect can be obtained between the second and fifth ratchet teeth.
CAUTION:
Follow the adjustment instructions to obtain full handbrake effect.

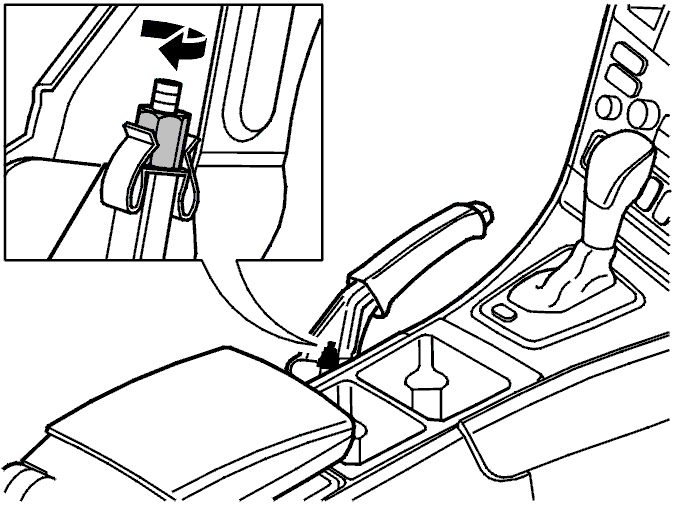

Turn the adjustment screw so that full braking effect is achieved between the second and the fifth notch.
Final check
Check that the wheels rotate freely after adjustment.
Test drive and readjust the handbrake
After replacing the brake shoes:
Drive the car at 30 km/h. Apply the handbrake lever until the car stops. This allows the brake shoes to bed into the brake drum.
Adjust the handbrake as required.
