Removing the steering wheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

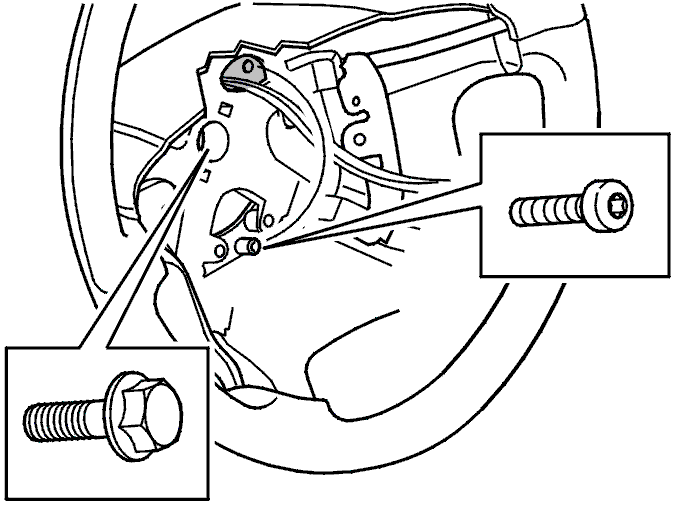

Fig 1: Bolt From Steering Wheel Column
GLL104695Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the driver's airbag module. See Airbag driver and passenger (SRS), replacing .

Lock the contact reel in position with the locking screw.

Remove the screw steering wheel - steering column.

Pull the steering wheel straight back.

Pull out the cable harness through the hole in the steering wheel. Remove the steering wheel.
