Removing the inflatable curtain (IC module) support clips

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Inflatable Curtain Support Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover with plug.

HINT: Use a TX10 Torx driver. Press the driver straight into the hole to release the catches on the plug.

Move the cover to one side.

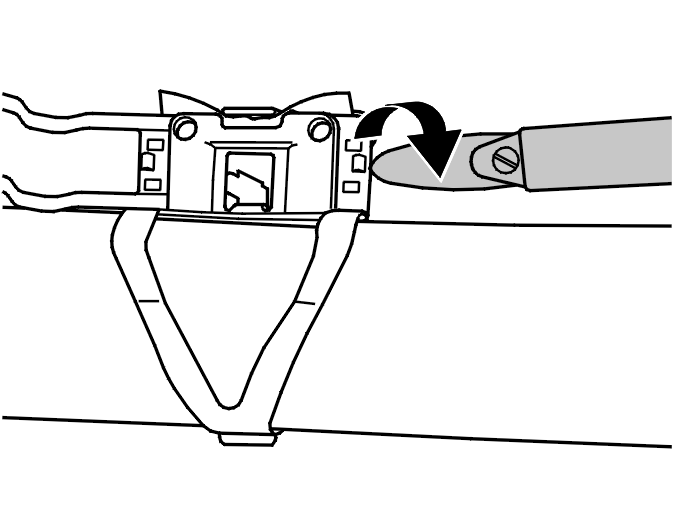

Fig 2: Identifying Weatherstrip Tool, Support Clip & Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle the support clip to one side.

Insert the weatherstrip tool between the support clip and the bodywork. See the illustration.

Unclip the clip from the body. The support clips will be deformed.

NOTE:

Always replace removed support clips with new ones.

When replacing the new inflatable curtain (IC module):

The support clips are pre-mounted on the new inflatable curtain.

When replacing the support clips on the existing inflatable curtain (IC module):

Remove the inflatable curtain (IC-module) from the car. See IC (inflatable curtain) module, replacing .

Place the inflatable curtain on a level surface.

Check that the inflatable curtain is taped (white pieces of tape).

If these pieces of tape are missing, replace the inflatable curtain with a new one.

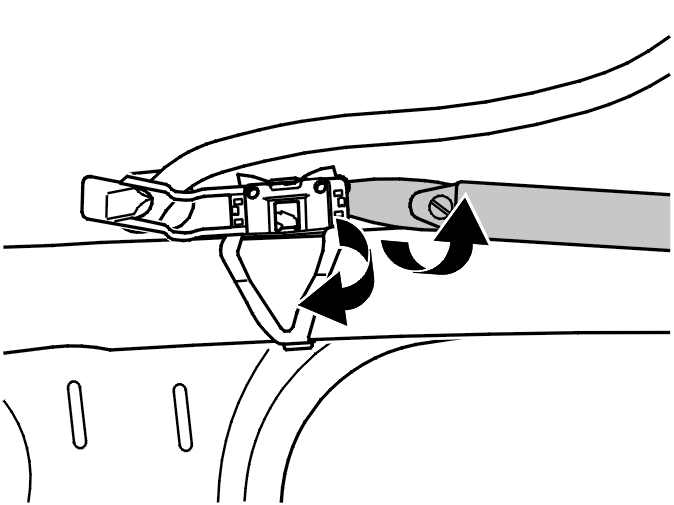

Fig 3: Identifying Weatherstrip Tool, Support Clip & Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Only replace one support clip at a time.

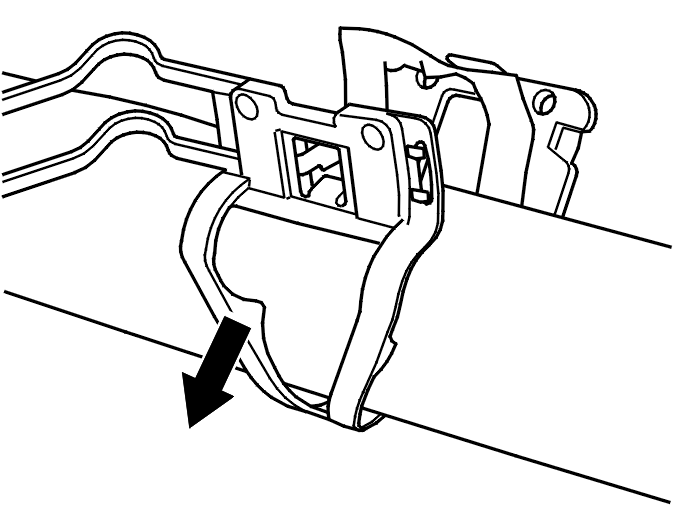

Fig 4: Identifying Support Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the support clip from the inflatable curtain.
