Installing the inflatable curtain (IC module) support clips

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

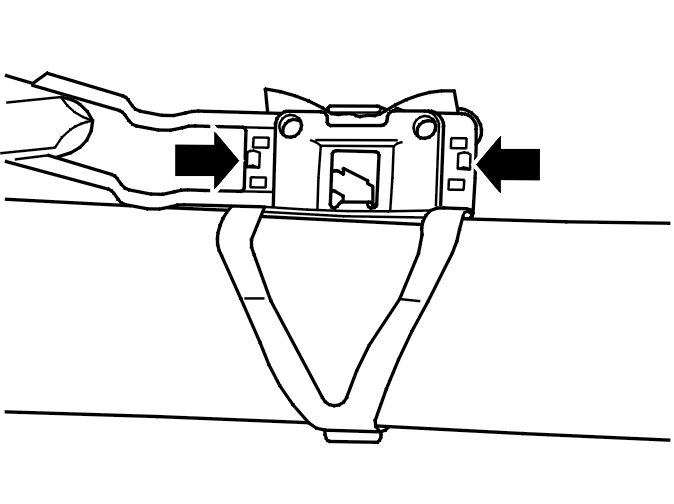

Fig 1: Identifying Support Clip
GLL108381Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new support clip on the inflatable curtain.

NOTE:

Ensure that the support clip has clicked together.

Check that the hooks have locked.

Reinstall the inflatable curtain in the car. See IC (inflatable curtain) module, replacing .
