Removing the C-post panel
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- the weatherstrip
- the panel
- the seat belt cover
- the end mounting. See End mounting, replacing .
Pull the seat belt out through the panel.

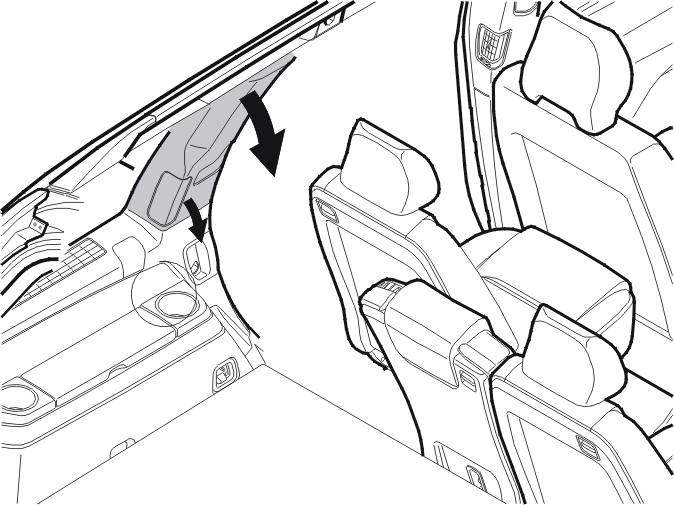

Remove the panel by pulling it straight into the car.
Press the panel upwards so that the air duct releases.
