Removing the headlining

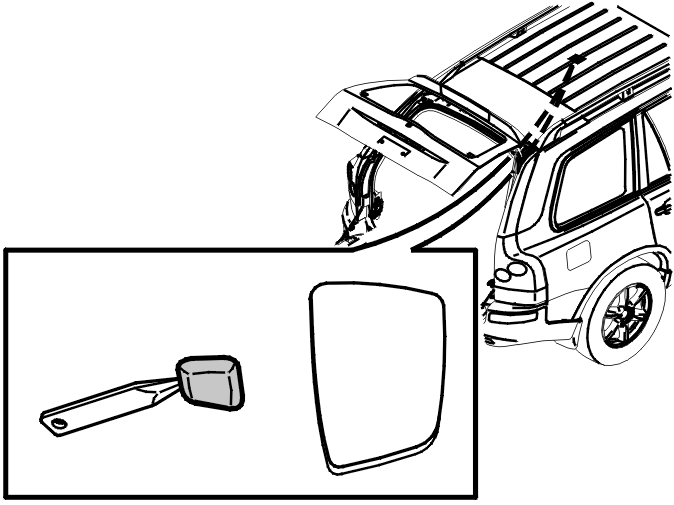

Fig 1: Identifying Roof Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the sun visors. See Sun visor, replacing
• the roof module. See Upper electronic module (UEM)/rearview mirror, replacing
• the grab handles
• the mounting for the cargo net
• the rear reading lamp. See Bulb, reading lamp, rear, replacing
• the connector for the rear reading lamp
• the roof clip.

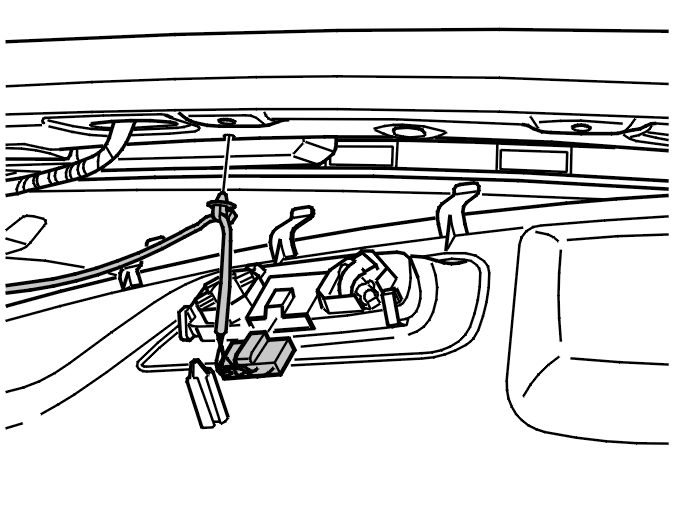

Fig 2: Identifying Reading Lamp Cable And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the cantrail panel. See Panel cantrail, replacing .

Detach and fold down:

• the D-post panel. See Panel D-post, replacing
• the C-post panel. See Panel C-post, replacing .

HINT: Leave the headlining hanging from the B-posts.

Remove the A-post panel. See Panel, A-post, replacing .

Remove the washer hose at the lower corner by the right-hand A-post.

Detach the washer hose at the trunk lid.

Remove the clips from the cable for the reading lamp.

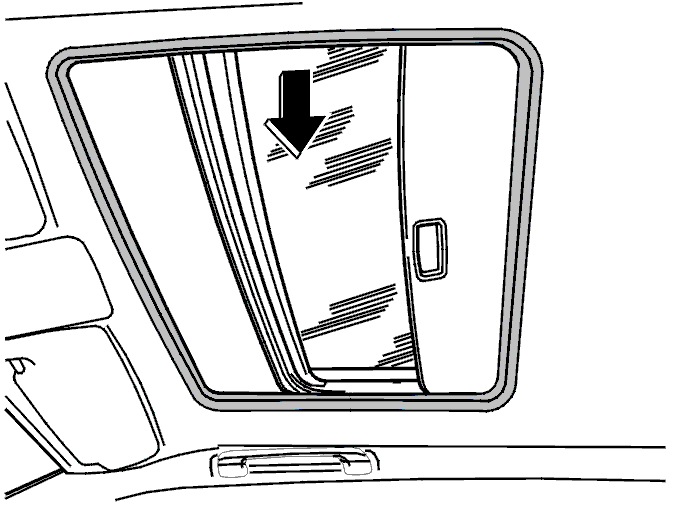

Fig 3: Identifying Sunroof Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cars equipped with sun roofs:

Remove the molding around the sun roof.

Pull the molding inwards into the car. Start at the short side so that the corners release.

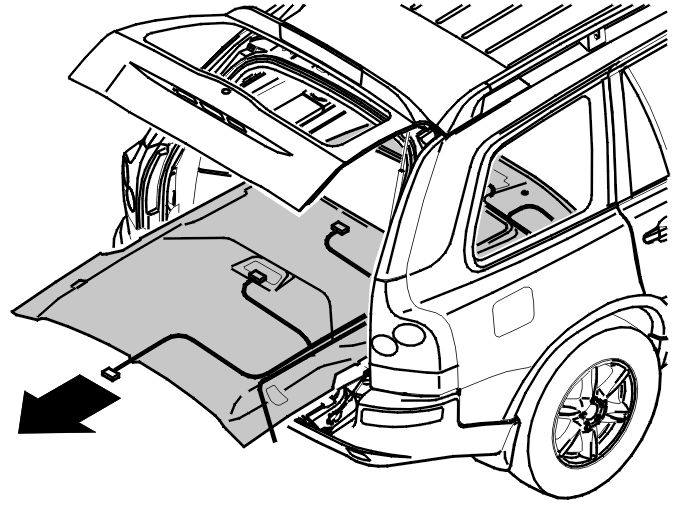

Fig 4: Pulling Headlining Out Through Tailgate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully detach the headlining from the B-posts.

Pull the headlining out through the tailgate at an angle.

HINT: Try to keep the headlining as close to the floor as possible.

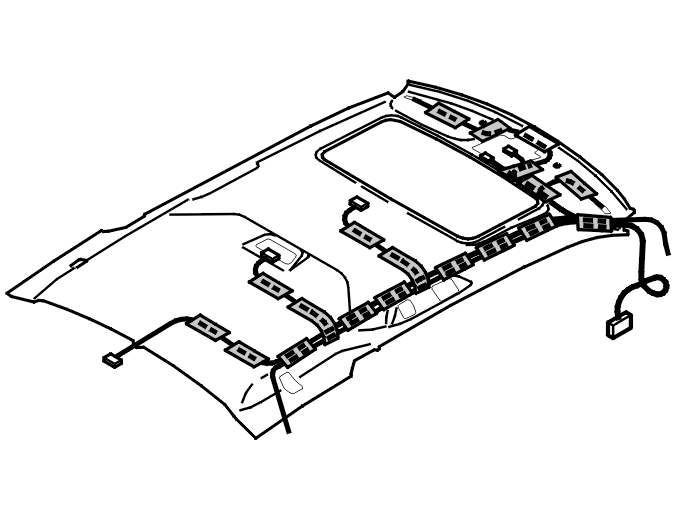

Fig 5: Identifying Cable Harness Routing On Headlining

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer:

• the front volume sensor (mass movement sensor). See Mass movement sensor module (MMS) front, replacing
• the rear volume sensor. See Mass movement sensor module (MMS) rear, replacing
• the cable harness.
