Installing the headlining

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

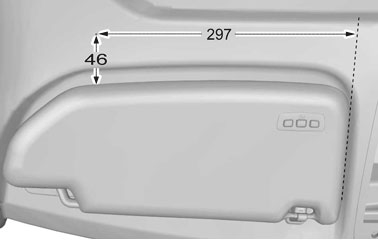

Fig 1: Identifying Measurement

GLL174135

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Hole Saw Special Tool For Headlining Installation

GLL169734

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Pass-Through Hole For Cable

GLL169736

Courtesy of VOLVO CARS OF NORTH AMERICA.

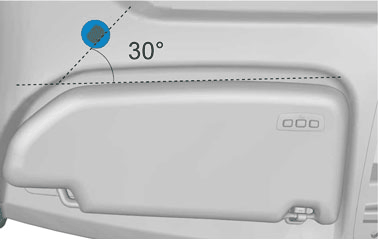

Fig 4: Identifying Angle Measurement

GLL174137

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

For tightening torques, see Tightening torque

Fig 5: Identifying Cable Clip

GLL169743

Courtesy of VOLVO CARS OF NORTH AMERICA.

the clips to the cable for the reading lamp
the washer hose at the tailgate
the washer hose at the A-post
A-pillar panel. Panel, A-post, replacing
C-pillar panel. Panel, C-post, replacing
D-pillar panel. Panel, D-post, replacing
Cantrail panel. Panel, cantrail, replacing
the roof clip.
the connector for the rear reading lamp
the rear reading lamp Bulb, reading lamp, rear, replacing
the mounting for the cargo net
the grab handle
the roof module Upper electronic module (UEM)/rearview mirror, replacing
the sun visors. Sun visor, replacing

CAUTION:

Do not damage or trap any cables when installing the sun visors.

Connect the battery lead. Battery, disconnecting
