Removing inflatable curtains (five seat version)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

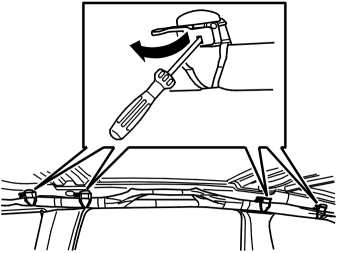

Fig 1: Identifying Inflatable Curtain Support Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the headlining. See Headlining, replacing
the connector
the support clips from the body, (4 each side). See Support clips inflatable curtain (inflatable curtain module), replacing .

Fig 2: Identifying Screw And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the front securing clip
the clip at the A-post. Unhook the hook
the screw.

Fig 3: Locating Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

the screw from the gas generator bracket. Unhook
the screw from the eyelet mounting. Unhook.

Lift out the inflatable curtain.
