Installing inflatable curtains (five seat version)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For tightening torques, see Tightening torque .

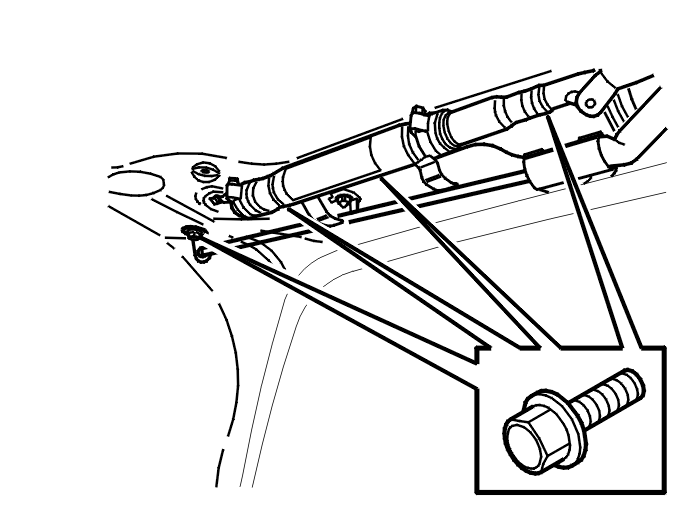

Fig 1: Locating Screws

GLL108371

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the insert on the gas generator bracket on the body side
the 4 support clips on the body side. Press into place
the 3 M6 screws. Tighten
1 M6 screw to the eyelet. Tighten.

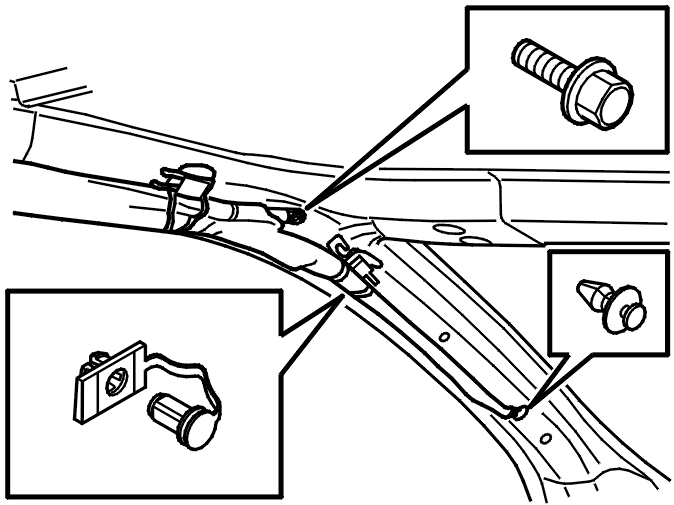

Fig 2: Identifying Screw And Clips

GLL124891

Courtesy of VOLVO CARS OF NORTH AMERICA.

1 M6 screw for the gas pipe at the A-post. Unhook the hook at the A-post
the clip
the front securing clip at the A-post.

CAUTION:

Always replace the front securing clip with a new one.

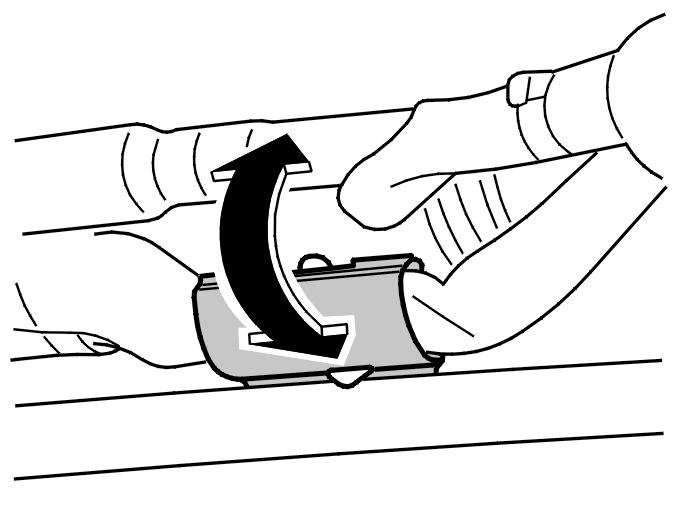

Fig 3: Identifying Sail Fixation

GLL108372

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check:

the function of the clip for the sail fixation so that it releases easily
that the inflatable curtain is not trapped.

Install:

the connector
the headlining. See Headlining, replacing .

Carry out an inspection. See Supplementary restraint system (SRS), inspection .
