Replacing the side cushion

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

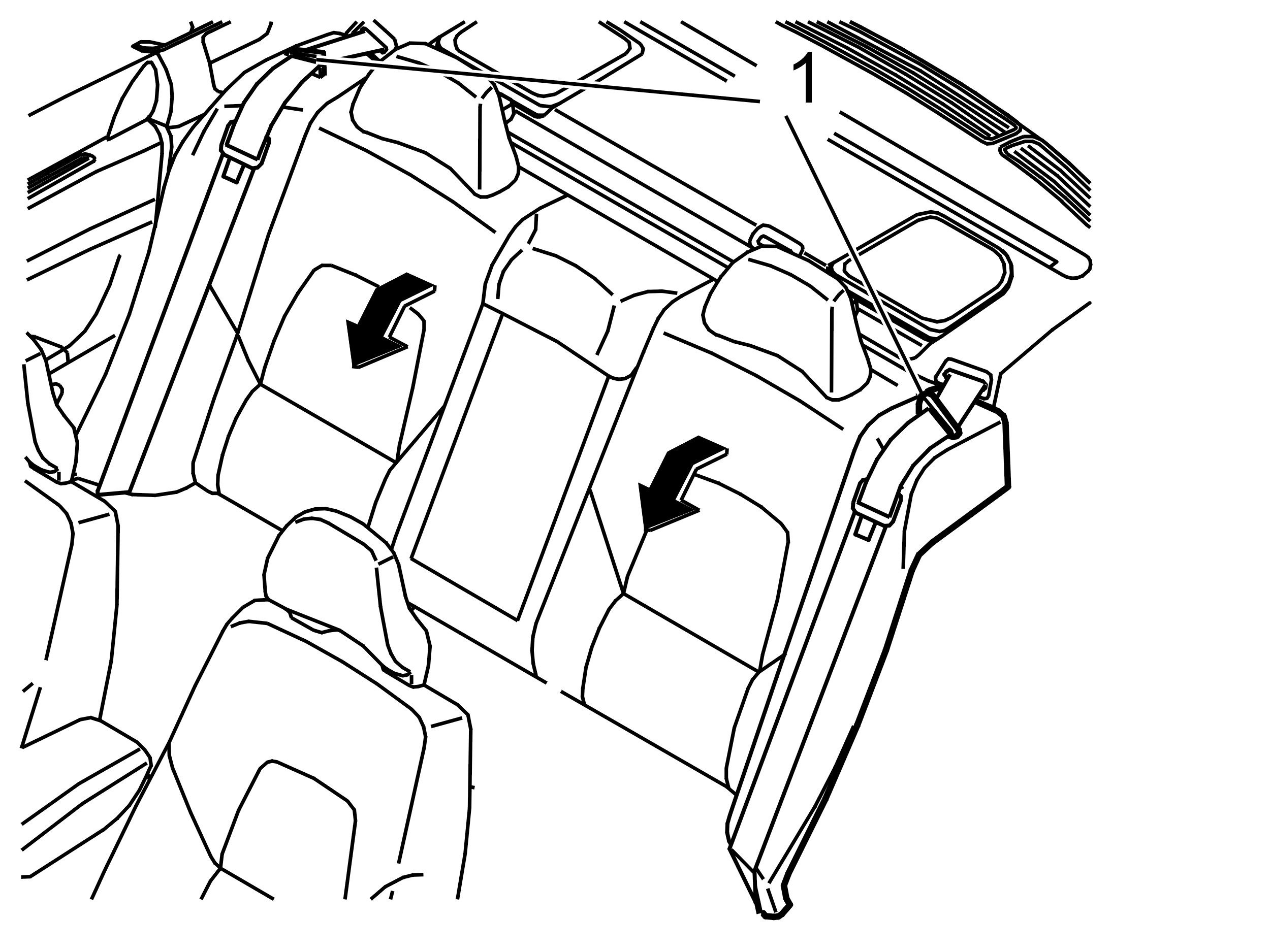

Fig 1: Folding Rear Seat Backrest Forwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the rear seat backrest forwards.

Unthread the belt (1) from the belt guide.

Fig 2: Identifying Upper Catch Of Side Cushion & Top Edge Of Front Cargo Compartment Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull out the top edge of the front cargo compartment panel to access the upper catch for the side cushion (1).

Fig 3: Identifying Clip & Side Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the clip (1) on the side of the side cushion.

Remove the side cushion. Press in the catch at the top edge of the reverse of the side cushion (1). At the same time twist the side cushion out of the car until the catch at the back of the side cushion releases.

Lift straight up.
