Removing backrest catches

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

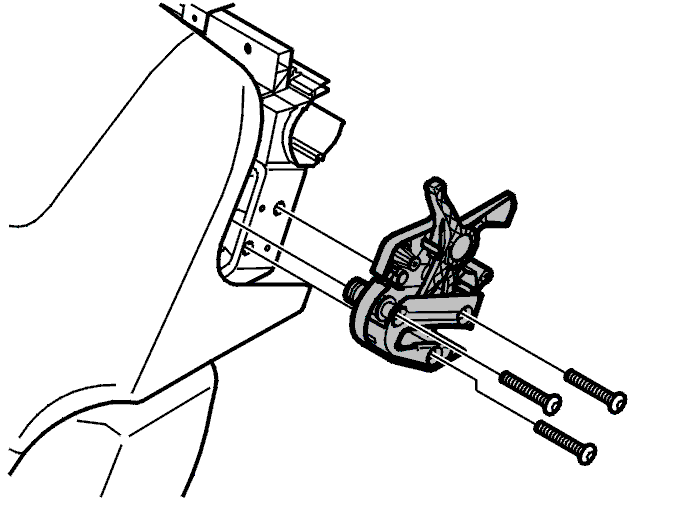

Fig 1: Identifying Three Screws & Lock Side Piece

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the lock side piece according to Lock side piece .
the three screws.

NOTE:

Never lock a removed catch by pressing the arm (1).
