Installing backrest catches

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

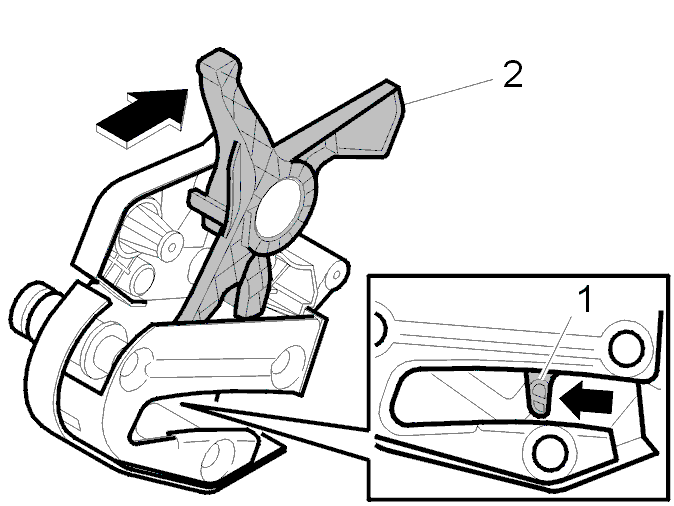

Fig 1: Aligning Locking Arm With Indicator Button On Side Piece

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

In reverse order.

NOTE:

The catch must be open during installation.

NOTE:

Align the locking arm (2) with the indicator button on the side piece.

NOTE:

If the backrest is equipped with a cargo net: Check that the lever for the recline angle function is in the correct position.
