Removing the nozzle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

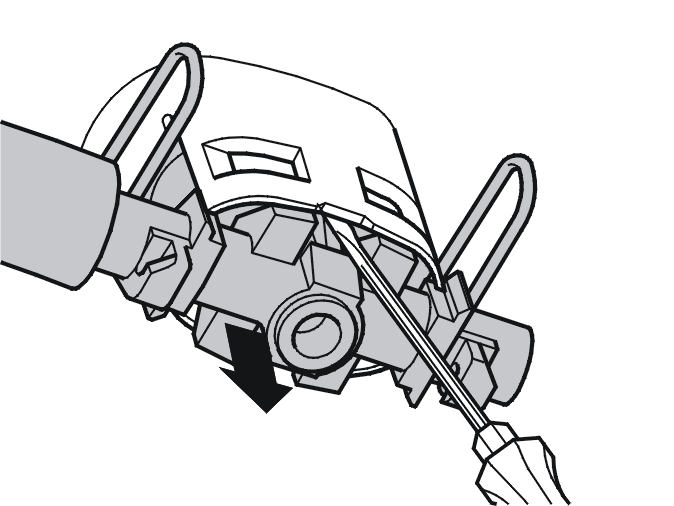

Fig 1: Identifying Nozzle
GLL146397Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the catches on the nozzle and pull out.

Remove the hose.
