Checking ground points: Information: Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

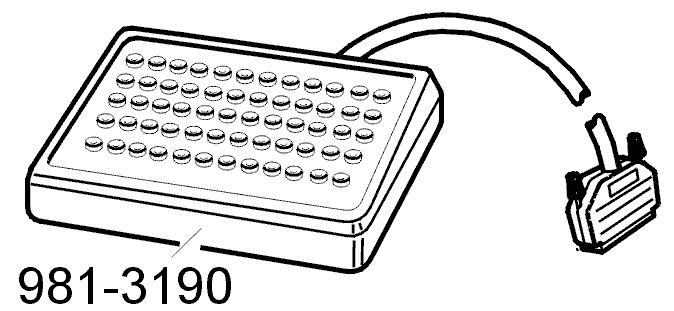

Fig 1: Identifying Breakout Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

Is the test box connected to the control unit?

YES
CONNECTED
NO
Refer to Connecting the test box

Special tools:

See 9511373

See 9511428
